RAIN RFID Reader Modules: Impinj-Powered, Partner-Built

Built on Impinj reader chips by some of the world’s leading brands, these RAIN RFID reader modules help you build high-performing, best-in-class devices for your customized IoT solution.

placeholder

Powerful reader modules built on Impinj reader chips

Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.

Why use Impinj-powered reader modules

Broad portfolio for any solution

Ranging in size, performance, and price, there’s a reader module for any application or form factor—no matter what problem you’re solving

Easier development

Expedite your development cycle with simple-to-use development kits and SDKs, global regulatory support, and more

High RAIN RFID performance

Achieve the speed and range your solution needs—with the receive sensitivity and integrated self-jammer cancellation for fast reading of small, global RAIN RFID tags

caen-rfid-lepton3
CAEN RFID Lepton3 (R3100C) Module
  • Made by: CAEN RFID
  • Powered by: Impinj E310 reader chip

The CAEN RFID Lepton3 (R3100C) is a 25 dBm 1-port RAIN RFID reader module that is pin compatible with the Impinj RS500/RS1000 reader modules and the CAEN RFID HadronMini. With programmable output power from 10 to 25 dBm, the Lepton can detect tags at more than 2 meters. The low power consumption makes it ideal to be embedded in portable, battery-powered devices.

caen-rfid-lepton7

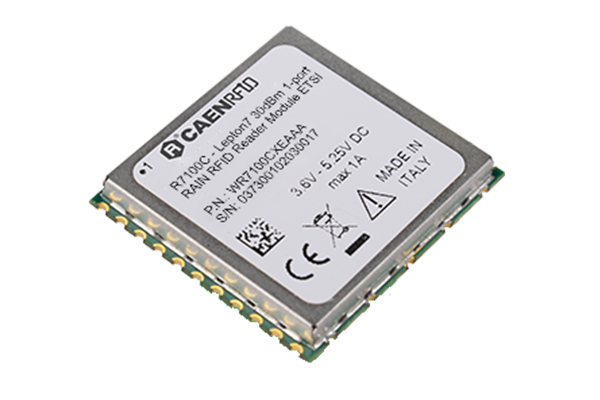

CAEN RFID Lepton7 (R7100C) Module
  • Made by: CAEN RFID
  • Powedered by: Impinj E710 reader chip

The CAEN RFID Lepton7 (R7100C) is a 30 dBm 1-port RAIN RFID reader module that is pin compatible with the Impinj RS500/RS1000 reader modules and the CAEN RFID HadronMini. With programmable output power from 10 to 30 dBm, the Lepton can detect tags at more than 5 meters. The low power consumption makes it ideal to be embedded in high-performance, portable, battery-powered devices.

Hopeland-Smart-series-HZ510-RFID-module

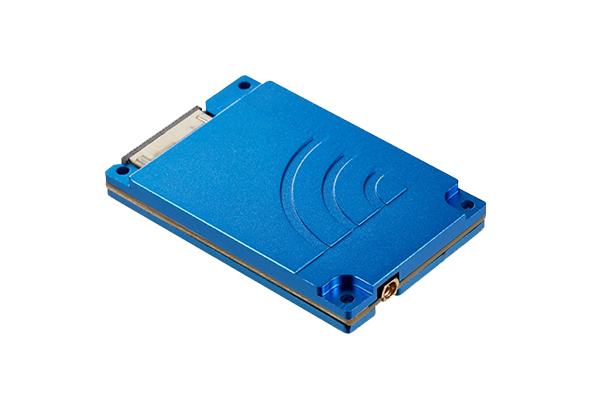

Hopeland Smart Series HZ510 RFID Module
  • Made by: Hopeland
  • Powered by: Impinj E710 reader chip

The Hopeland Smart series HZ510 is a miniaturized UHF RFID reading and writing module, using the highly integrated Impinj reader chip as the core platform. It supports excellent sensitivity and anti-conflict mechanism, multi-tag reading, integrated analog radio frequency front end and baseband digital signal processing module and other functions. The developer can easily control it through API, which is suitable for various application scenarios such as handhelds and readers.

jadak-think-magic-pico

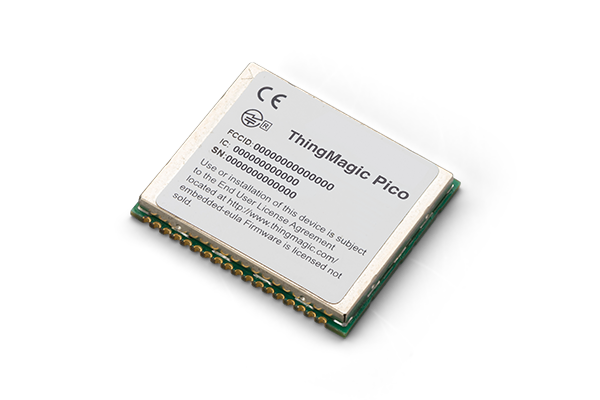

JADAK ThingMagic Pico Module
  • Made by: JADAK, A Novanta Company
  • Powered by: Impinj E310 reader chip

JADAK ThingMagic Pico is the smallest form factor for a Mercury Series embedded UHF/RAIN RFID module. ThingMagic Pico’s very low power consumption is ideal for battery-operated, low cost, small form-factor portable readers. And its wide RF output range is critical in supporting read/write requirements for RFID-enabled printers and tag commissioning stations, ideally suited for handheld devices, consumables authentication, device configuration and access control.

RoyalRay-RRU7180M-reader-module

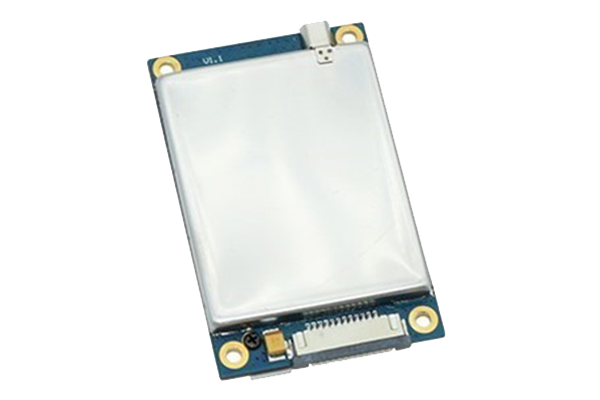

RoyalRay RRU7180M Reader Module
  • Made by: RoyalRay
  • Powered by: Impinj E710 reader chip

RRU7180M is a high-performance UHF RFID Module which is designed upon the Impinj E710 reader chip. Based on a proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate and can be widely applied in many RFID application systems such as logistics, access control, and industrial production process control system.

SLR-7100

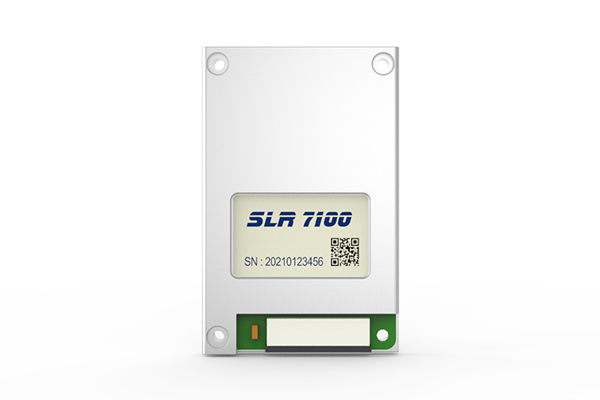

Silion SLR7100 Module
  • Made by: SILION TECH
  • Powered by: Impinj E710 reader chip

The UHF high-performance module SLR7100 is a single-port UHF RFID reader module. It is based on Impinj E710 designed to meet the needs of high-performance RFID handheld devices, mobile devices.

SLR-7200

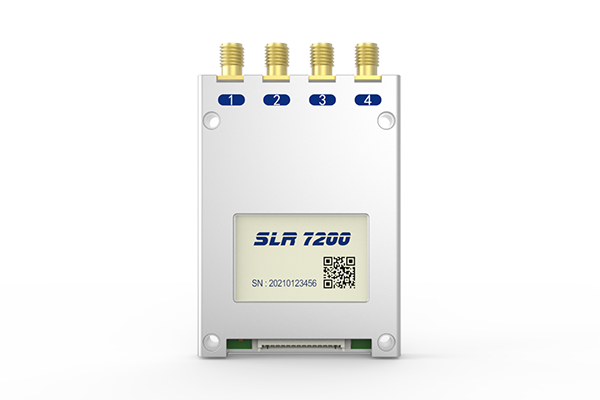

Silion SLR7200 Module
  • Made by: SILION TECH
  • Powered by: Impinj E710 reader chip

The UHF high-performance module SLR7200 is a 4-port UHF RFID reader module. It is based on Impinj E710 designed to meet the needs of high-performance RFID fixed reader.

SLR-7300

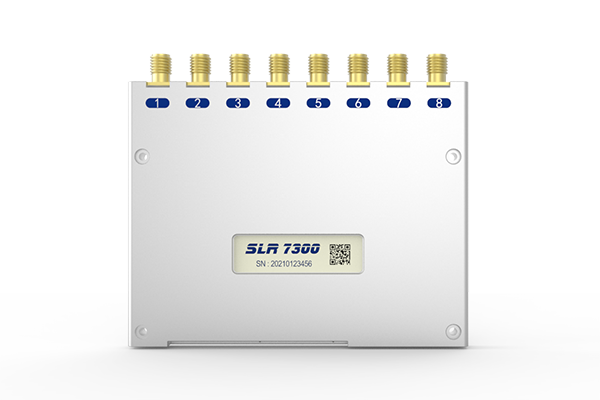

Silion SLR7300 Module
  • Made by: SILION TECH
  • Powered by: Impinj E710 reader chip

The UHF high-performance module SLR7300 is a 8-port UHF RFID reader. It is based on Impinj E710 designed to meet the needs of high-performance RFID devices, it’s good for asset management and retail.

SLR-7400

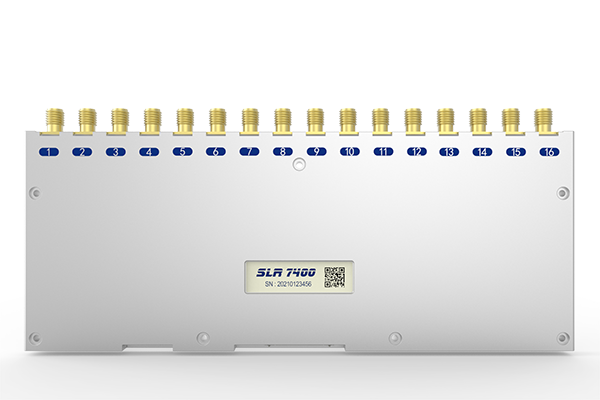

Silion SLR7400 Module
  • Made by: SILION TECH
  • Powered by: Impinj E710 reader chip

The UHF high-performance module SLR7400 is a 16-port UHF RFID reader module. It is based on Impinj E710 designed to meet the needs of high-performance RFID devices, it’s good for asset management and retail.

SLR-7500
Silion SLR7500 Module
  • Made by: SILION TECH
  • Powered by: Impinj E310 reader chip

The UHF module SLR7500 is a cost-effective UHF RFID reader module. It is based on impinj E310. The SLR7500 module's low power consumption, coin size, good RF performance and advanced anti-jamming design make it a preferred choice for mobile devices.

caen-rfid-logo
CAEN RFID Modules
  • Made by: CAEN RFID
  • Powered by: Impinj R2000 reader chip

CAEN RFID designs and manufactures RAIN RFID readers, from module to fixed and mobile. CAEN offers two Impinj-powered reader modules that leverage the Impinj R2000 reader chip. The Hadron R4320C module is designed for high performance handhelds and sleds, POS readers, self-service kiosks, industrial automation readers, and more. The Hadron Mini R1271C module, pin-for-pin and software compatible with the Impinj RS1000 module, is designed for handheld devices, multi-regional label printers and applicators, POS readers, and voice-operated gloves.

chainway-logo
Chainway Modules
  • Made by: Chainway
  • Powered by: Impinj R2000 reader chips

Chainway Information Technology Co., Ltd offers a broad range of data collection devices, including mobile computers, handheld & fixed RFID readers, tablets, biometric scanners, RFID modules, and vehicle computers. Chainway has four Impinj-powered reader modules that leverage the Impinj R2000 reader chip. The Chainway modules (CM2000-1, CM2000-4, CM2000-8, CM2000-16) are designed to be integrated in mobile readers, fixed readers, card readers, and integrated RFID readers — used in warehousing, logistics, apparel and production lines to boost efficiency.

Jadak-logo
Jadak ThingMagic Modules
  • Made by: Jadak
  • Powered by: Impinj R2000 and R500 reader chips

JADAK ThingMagic offers four Impinj-powered reader modules designed for use in healthcare and pharmaceutical industries, POS devices, security access points, mobile devices, kiosks, vending machines, and tag commissioning stations. Built on the Impinj R2000 reader chip, the Micro series is designed for handhelds, mobile devices, and stationary 2-port readers. The M6e also leverages the Impinj R2000 and is designed for applications requiring the greatest power and flexibility, and offers improved development time-to-market advantages.The M6e Nano leverages the Impinj R500 reader chip and is designed for battery operated, low-cost, small form factor portable devices.

MTI-Logo
MTI Modules
  • Made by: MTI
  • Powered by: Impinj R2000 reader chips

Part of the Foxconn Technology Group, Microelectronics Technology Inc. (MTI) offers two reader modules that leverage the Impinj R2000 reader chip. The RU-861-0XX is MTI's second generation UHF RFID reader module based on Impinj reader chips. It is designed for logistics and item-level inventory management, retail commissioning and item-level tracking, cargo tracking, and more. The M200-RS module is pin-for-pin and software compatible with the Impinj RS2000 module.

rodinbell-logo
RodinBell Modules
  • Made by: RodinBell
  • Powered by: Impinj R2000 reader chip

Shenzhen RodinBell Technology Co., Ltd. offers five reader modules that leverage the Impinj R2000 reader chip. The RodinBell modules (M-2600, M-2670, M-2800, M-2900, M-2916) are designed for use in logistics, retail, transportation, education, finance, security, entertainment industry, and more.

RoyalRay-logo
RoyalRay Modules
  • Made by: RoyalRay
  • Powered by: Impinj R2000 reader chip

Shenzhen RoyalRay Science and Technology Co., Ltd. offers Impinj-powered reader modules (RRU2889M, RRU2882M, RRU9881M, RRU9803M). These modules leverage the Impinj R2000 reader chip and are designed for use in logistics, access control, attendance systems, anti-counterfeit and industrial production process control systems.

silion-logo
Silion Modules
  • Made by: Silion
  • Powered by: Impinj R2000 reader chip

Beijing Silion Technology Corp., Ltd. offers five reader modules that leverage the Impinj R2000 reader chip. The SLR1200 and the SLR1200V2 modules’ low power consumption, small size, good RF performance, and advanced anti-jamming design make them a preferred choice for mobile devices. The SLR1100 module is designed to meet the needs of high-performance handheld devices, mobile devices, and fixed readers. The SLR6100 can be used for multiple antenna time-sharing applications. The SLR6800 is pin-for-pin and software compatible with the Impinj RS1000 and RS500 modules.

Impinj-reader-antennas

Impinj reader accessories expand RAIN RFID use cases

Impinj provides reader accessories that include antenna hubs and antennas. The antenna hubs enable partner solutions to easily connect up to 32 antennas to a single Impinj RAIN RFID reader. The antennas connect to RAIN RFID readers, with or without an antenna hub, and come in an assortment of sizes and enclosures to support proximity, specialized, and distance read zones.
