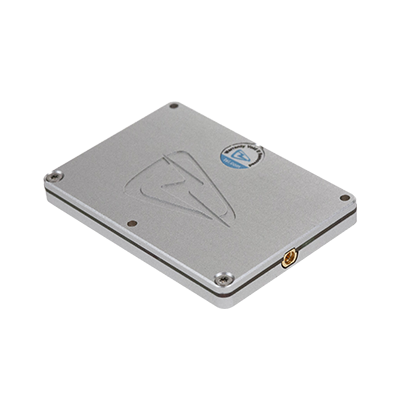

3117 RAIN RFID Reader Module
Technology Solutions (UK) Ltd.’s 3117 RAIN RFID reader module is a stand-alone component, allowing device manufacturers to create custom, tailor-made RAIN RFID hardware for their customers. TSL’s new STORM protocol provides a comfortable, intuitive design environment, allowing complex tag operations to be executed using simple but powerful pre-configured commands. With a single antenna port and a slim form factor, the TSL 3117 can be easily integrated into OEM applications. The reader module features the Impinj E710 reader chip, enabling read rates of up to 1,300 tags per second.
-
Category:Reader Modules
-
Purpose:Mobile, handheld, and tunnel readers
-
Impinj Product:Impinj E710
-
# of Antenna Ports:1
-
Dimension Length (mm):60
-
Dimension Width (mm):42
-
Max Power Output (dBm):30
-
Additional Info:
Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.
-ltd_5e3fb27114ab5c2cf65bde7e717bb824.jpeg)
Stand-alone component ideal for handhelds
TSL’s 3117 RAIN RFID reader module is ideal for handheld readers, wearable readers, and single antenna-embedded applications such as kiosks. It is designed for use in any industry, including retail, agriculture, construction, healthcare, hospitality, transportation/logistics, and warehouse/distribution. It is appropriate for asset tracking/inventory management, automation, safety/compliance, personnel tracking, and authentication.
The module features the Impinj E710 reader chip for high receive sensitivity and fast read rate.
A module for mid-volume manufacturers
Stand-alone and customizable
Users can create their own RFID hardware, fully tailored to meet their needs.
Ideal for mobile uses
The module’s small size (30 g. / 1.06 oz.), makes it ideal for mobile and battery-powered applications.
Up to -88 dBm read sensitivity
High read sensitivity and lower power consumption mean increased performance and better battery life.
Flexible and capable, no matter the location
As a global SKU, the TSL module can be used just about anywhere in the world, and supports a range of voltages for different scenarios and systems. It also supports multiple RF modes, including High Speed Tag Acquisition Mode, High Sensitivity Mode, and Dense Reader Mode.
Powerful reader modules built on Impinj reader chips
Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
