3417 RAIN RFID Reader Module
As a stand-alone component, Technology Solutions (UK) Ltd.’s 3417 RAIN RFID reader module allows device manufacturers to create custom, tailor-made RAIN RFID hardware for their customers. TSL’s new STORM protocol provides a comfortable, intuitive design environment, allowing complex tag operations to be executed using simple but powerful pre-configured commands. The module features the Impinj E710 reader chip for high receive sensitivity and fast read rate.
-
Category:Reader Modules
-
Purpose:Mobile, handheld, and tunnel readers
-
Impinj Product:Impinj E710
-
# of Antenna Ports:4
-
Dimension Length (mm):68
-
Dimension Width (mm):42
-
Max Power Output (dBm):30
-
Additional Info:
Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.
-ltd_5e3fb27114ab5c2cf65bde7e717bb824.jpeg)

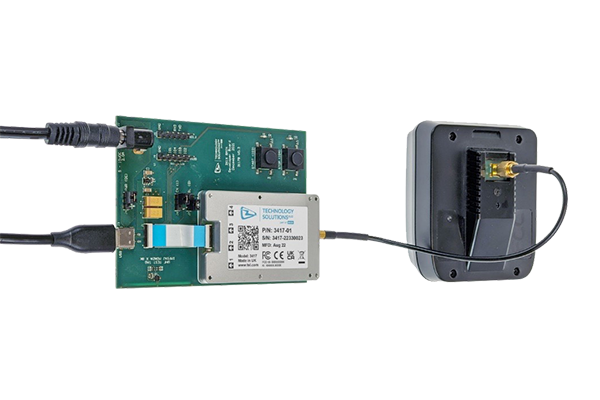

Easy-to-integrate stand-alone reader module

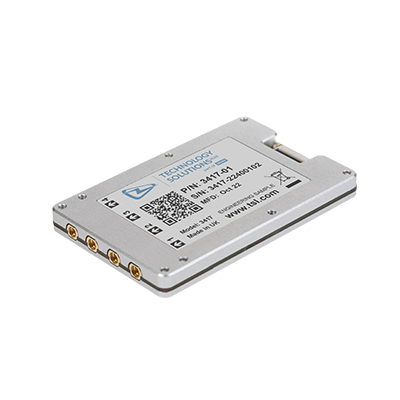

TSL’s 3417 RAIN RFID reader module with Impinj’s E710 reader chip is a high-performance, energy-efficient reader module featuring four antenna ports.
The TSL 3417 can be easily integrated into OEM applications such as battery-powered handheld readers and tunnel readers. The TSL 3417 is particularly suited for the warehouse industry, where a fast tag-read rate and high sensitivity are required to track the movement of densely packed items.
High-performance, energy-efficient module
High read sensitivity; up to -88 dBm
The 3417’s high-read sensitivity means better performance in dense tag environments, and lower power consumption translates to better battery life.
Fast tag acquisition rate
The TSL 3417 enables read rates of up to 1,300 tags per second, thanks to the Impinj E710 reader chip.
Slim form factor
At only 34 g. (1.19 oz.), the module is perfect for small-size readers, including wearables, tablets, and handheld device.
Flexible and capable, no matter the location
As a global SKU, the TSL module can be used just about anywhere in the world, and supports a range of voltages for different scenarios and systems. It also supports multiple RF modes, including High Speed Tag Acquisition Mode, High Sensitivity Mode, and Dense Reader Mode.
Powerful reader modules built on Impinj reader chips
Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
