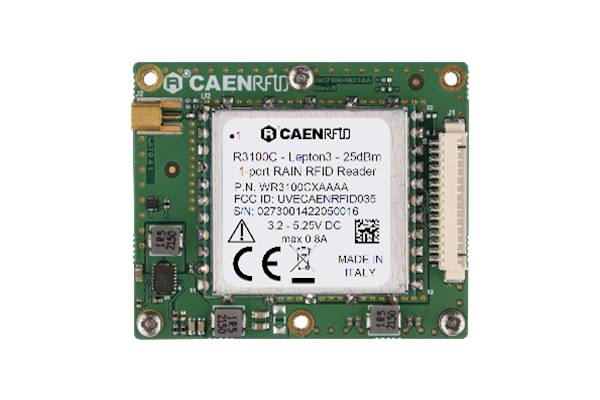

Lepton3x1 RAIN RFID Reader Module

CAEN’s Lepton3x1 is a compact reader module uniquely designed for low-power, high-performance RAIN RFID applications. Its small size makes it easy to integrate into battery-powered devices. Powered by the high performance Impinj E310 RAIN RFID reader chip, this module can accomplish fast reading speeds—even in environments that are reader- or tag-dense—ensuring best-in-class performance.

Lepton3x1 RAIN RFID Reader Module
  • Category:
    Reader Modules
  • Purpose:
    Mobile and handheld devices, printers, and mid-range reading points
  • Impinj Product:
    Impinj E310
  • # of Antenna Ports:
    1
  • Dimension Length (mm):
    51
  • Dimension Width (mm):
    42
  • Max Power Output (dBm):
    25
  • Additional Info:

Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.



ABOUT THE PARTNER

CAEN RFID

CAEN RFID

CAEN RFID designs and manufactures RAIN RFID readers, from module to fixed and mobile. The offering is completed by dual frequency RAIN/NFC loggers.


View Partner

handheld-reader

Highly effective for use in handheld readers

With its uniquely compact size and lower power consumption, the Lepton3x1 is ideal for use in mobile accessories and industrial handheld devices, printers, and other mid-range reading points. This module can deliver RAIN RFID solutions to devices that require long battery life and easy, high-performance reading.

Small and low energy for reliable operation

Compact form factor

This module is ideal for use in small handheld devices including handheld readers as well as smartphone accessories.

Low power consumption

Handhelds and other RAIN RFID reading devices will provide uninterrupted performance due to the low power demands of the Lepton3x1.

Worldwide regulations support

The Lepton3x1 complies with both European and U.S. regulatory environments, making it easy to deploy across continents.

3x1-image

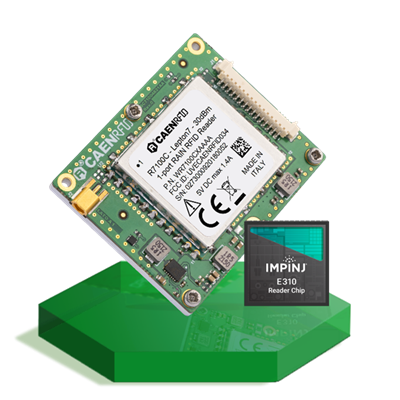

Providing high performance even in the smallest readers

At just 30 grams and measuring 51 x 42 millimeters, this powerful reader module offers RAIN RFID read functionality in the smallest devices, bringing the intelligence needed to capture data from tags in crowded environments. With 5 milliamps (mA) power consumption in idle mode and 800 mA at 5-volt RF output, this module ensures operation for many hours without requiring recharging.

placeholder

Built by Impinj partners, powered by Impinj reader chips

Accelerate your time to market by simplifying development, manufacturing, and certification. By choosing an Impinj-enabled reader module based on your unique requirements for size, performance, and features, you can build the exact solution you need and get to market faster. Browse RAIN RFID reader modules from Impinj partners below.
