Hadron

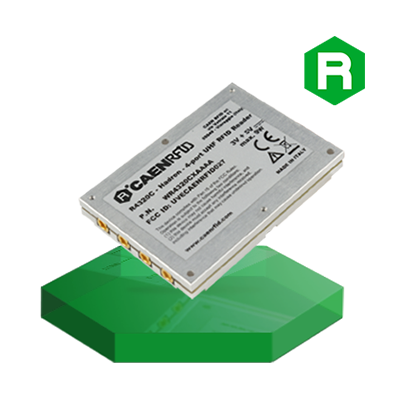

The CAEN Hadron is a multiregional RAIN RFID module for high-performance applications. With programmable output power from 10 dBm to 31.5 dBm, the reader reaches top reading performances, able to interrogate RAIN RFID tags from a distance up to nine meters.

Hadron
  • Category:
    Reader Modules
  • Purpose:
    High-end handheld devices, RFID engine for fixed readers, smart shelves, and engine for any long-range reader.
  • Impinj Product:
    Impinj R2000
  • # of Antenna Ports:
    4
  • Dimension Length (mm):
    60
  • Dimension Width (mm):
    42
  • Max Power Output (dBm):
    32
  • Additional Info:


ABOUT THE PARTNER

CAEN RFID

CAEN RFID

CAEN RFID designs and manufactures RAIN RFID readers, from module to fixed and mobile. The offering is completed by dual frequency RAIN/NFC loggers.


View Partner

high-performance-hadron

High-performance embedded RAIN RFID reader module

High-end handheld devices, fixed readers, and smart shelves require fast, powerful reader modules that can be easily embedded. The CAEN RFID Hadron, built on the Impinj R2000 RAIN RFID reader chip, is a multiregional, four-port reader unit with flexibility for integration into a variety of reader form factors.

High-performance, 4-port embedded RAIN RFID reader

High output power and sensitivity

The Hadron can detect RAIN RFID tags at up to nine meters, with fast reads even in dense tag environments.

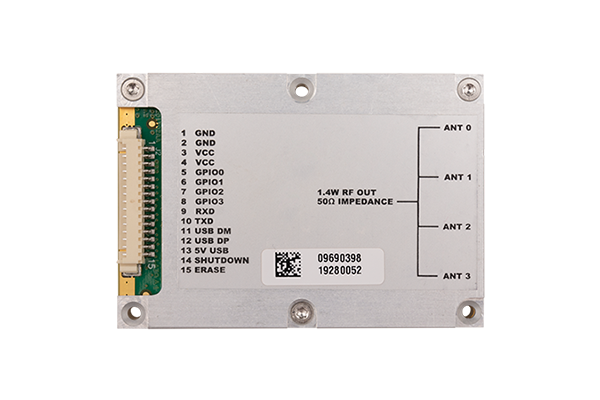

Four antenna ports

This 4-port reader module can be embedded into a wide variety of RAIN RFID devices, and accommodates the antennas needed for the highest-performing reads.

Worldwide support in a single SKU

By complying with both European and U.S. regulatory environments, the Hadron offers a solution for RAIN RFID requirements around the globe.

hadron-category

Designed to excel in a variety of RAIN RFID reader form factors, from handheld to fixed portals

The CAEN RFID Hadron module boasts high-output power and optimal sensitivity so that handheld devices, fixed readers, and smart shelves can gain the best possible performance. With multiregional support provided by a single SKU, this powerful, embedded RAIN RFID reader can simplify worldwide applications.

placeholder

Powerful reader modules built on Impinj reader chips

Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
