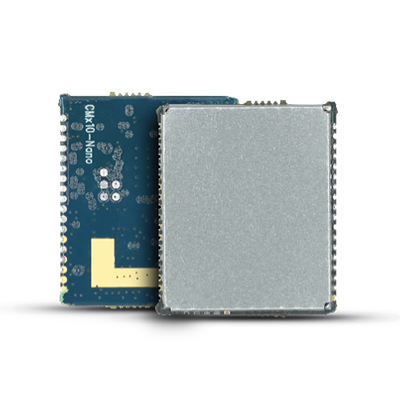

CM510-Nano UHF RFID Module (1-Port)
The ultra-compact Chainway CM510-Nano UHF RFID module is ideal for reading and writing in short-range scenarios such as container logistics and healthcare settings. Powered by the Impinj E510 RAIN RFID reader chip, the CM510-Nano is easily integrated into devices and offers excellent anti-electromagnetic interference and heat dissipation, as well as a low power-consumption rate.
-
Category:Reader Modules
-
Purpose:RFID printers
-
Impinj Product:Impinj E510
-
# of Antenna Ports:1
-
Dimension Length (mm):26
-
Dimension Width (mm):22
-
Max Power Output (dBm):30
-
Additional Info:
Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.
ABOUT THE PARTNER
Chainway
Chainway is an industry-leading RFID supplier that designs, develops, and manufactures a wide range of high-performance RFID products.
Small, strong, and based on Impinj
Good receive sensitivity and close read range
The CM510-Nano is powered by the Impinj E510 RAIN RFID reader chip, offering good receive sensitivity for close read range and a fast read rate.
Ideal for handheld readers and printers
The ultra-small size of the CM510-Nano makes this module an ideal choice for lightweight handhelds and RAIN RFID printers.
Perfect for challenging industries
The CM510-Nano offers strength and stability for readers used in challenging workplaces such as healthcare facilities and container logistics.

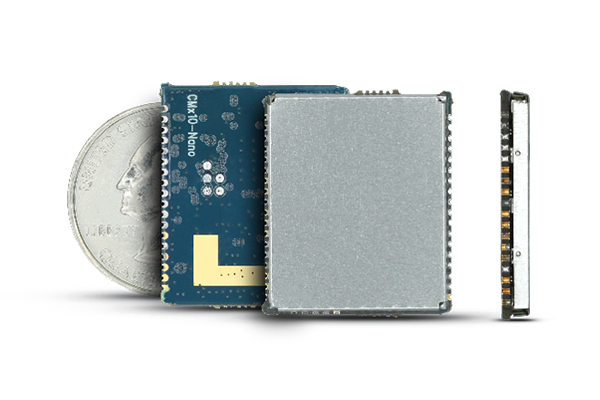

Ultra-small and ultra-lightweight
The single-port Chainway CM510-Nano measures just 26 by 22 by 3 millimeters and weighs just 5 grams, making it ideal for small RAIN RFID printers. It offers a read rate of up to 300 tags per second at a range of up to 2 meters with a 1 dBi antenna.
Powerful reader modules built on Impinj reader chips
Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
