Impinj Monza 4 Series RAIN RFID Tag Chips

Impinj Monza 4 series are specialty RAIN RFID tag chips that provide application-specific features such as privacy, enhanced performance, and flexible memory that are optimized for use in manufacturing and supply chain industries.

Impinj-M4-tag-chip

Find the right fit for specialty applications

Impinj Monza 4 series chips are available in four different variants to meet the needs of complex use cases. Chips in this series provide options for large memory capacity, omnidirectional reading capability, and tag data protections.

4D Tire Manufacturing

Impinj Monza 4D features superior sensitivity with omnidirectional performance

Impinj M4D RAIN RFID tag chips enable small, low-cost omnidirectional tags with high read rates for applications requiring standard memory sizes. Ideal for challenging applications where large memory is not required, Impinj M4D tag chips offer superior performance, True3D antenna support, and a standard memory size. Two fully independent antenna ports enable true omnidirectional tags that readers can see from any angle.

Impinj-Monza-4E-in-industrial-manufacturing

Impinj Monza 4E enables storage of extended serial numbers

Impinj M4E RAIN RFID tag chips enable small, inexpensive tags with extended EPC memory and high read rates. Monitor longer serial numbers, such as mobile equipment identities, electronic components, industrial parts, and government assets with Impinj M4E’s capability to support extended EPC memory up to 496 bits.

Impinj-Monza-4i-in-manufacturing-environment

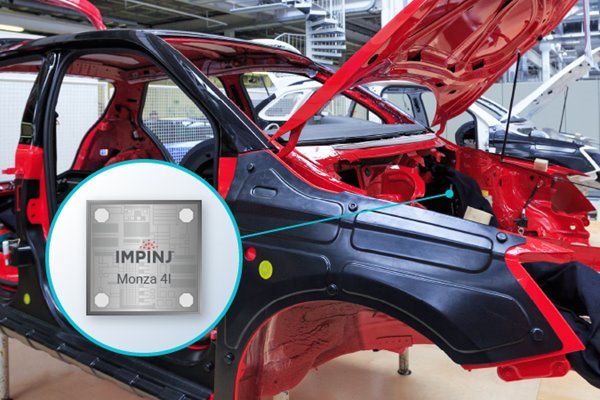

Impinj Monza 4i enables Industry 4.0 with smart manufacturing

Impinj M4i RAIN RFID tag chips enable data logging of item maintenance, component status & environmental conditions for improved production & smarter manufacturing. Ideal for component-level tagging in automotive production line manufacturing, Impinj M4i chips are built with an extended EPC memory to track long serial (such as VIN) numbers along with a large amount of user memory to chronicle the production process and components from raw material through final assembly.

Impinj-Monza-4QT-with-blood-sample-vials

Impinj Monza 4QT includes storage profiles for public and private data

Impinj M4QT RAIN RFID tag chips enable users to maintain a public and private data profile for confidential data storage and consumer privacy, coupled with large user memory. Assets requiring authentication, such as personnel IDs and pharmaceuticals, are more secure with Impinj M4QT tag chip’s ability to store confidential data in a private profile while providing less sensitive data in a public profile. Extended user memory enables a portable, private database that travels with the tag and protects data confidentiality providing consumer privacy.

Impinj-helix

Why use Impinj M4 series tag chips

Impinj M4 tag chips are deployed in RAIN RFID solutions around the world. Choose these tag chips if you need:

  • More memory: meet use case requirements with larger memory capacity and multiple configuration options

  • Omnidirectional reading: tagged items can be oriented in any direction in the read zone

  • Tag data protection options: create private data profiles with Impinj QT technology or limit access via short range capability and Access/Kill commands

  • Packaged tag options: embed RAIN RFID tags into electronic components or build ruggedized tag designs

Connect every_thing with high-performing tag chip features

FastID high-speed reading

Reduce inventory time by simplifying the steps needed to identify a tag when using a TID-based numbering system

TagFocus read redundancy prevention

Unique algorithm prevents multiple reads of the same chip so that hard-to-read tags can be read more accurately within a complex population of tags

True3D antenna technology

Two fully independent antenna ports enable high-performance, omnidirectional tags

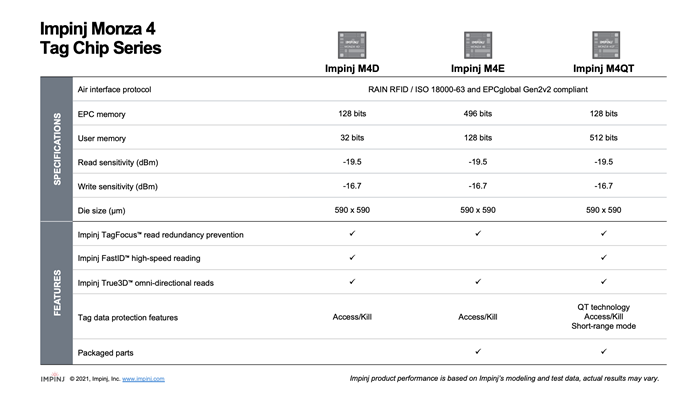

Compare Specifications

Click on image to enlarge

Support and Documentation

Download product briefs / datasheets
Visit support portal
Read application notes and tips
Visit support portal
Explore Impinj Support Portal
Visit support portal

Bring IoT to retail, logistics, manufacturing, healthcare, and more industries

See all solutions
Supply-Chain-Automation-Feature-Image
Supply Chain Automation

Leverage accurate, automated high-speed systems to enable full visibility and control

Learn more
Impinj-asset-management-Feature
Asset Management

Get increased visibility into asset management for efficient resource planning

Learn more
Impinj-retail-inventory-management-jeans
Inventory Management

Automate inventory counting within stores; gain powerful insights into store operations and customer preferences

Learn more
Impinj-tag-solutions

Find RAIN RFID tags and inlays built with Impinj chips

Impinj partners provide a vast range of tag and inlay products built with Impinj chips inside, providing unmatched system performance and item-level visibility for applications in industries from retail to healthcare, hospitality to supply chain.

illustration-impinj-platform-stacked-layers

Impinj connectivity platform—a foundation for IoT solutions

The Impinj platform lays a foundation for IoT solutions development, extending the Internet’s reach from the cloud, through edge connectivity devices, all the way to physical items. Our broad partner ecosystem uses our platform's best-in-market products, capabilities, and technology to deliver whole products that address business needs. Wirelessly connect everyday items to identify, locate, and protect them. Easy to deploy and use, our platform delivers performance unequaled by mix-and-match approaches built from other vendors’ products.

Impinj-readers-featured-image

Learn more about Impinj readers

Impinj readers wirelessly connect items to the Internet with the performance, quality, and reliability necessary for robust solutions. With numerous form and deployment options, Impinj RAIN RFID readers offer flexible implementation to meet your unique needs.
