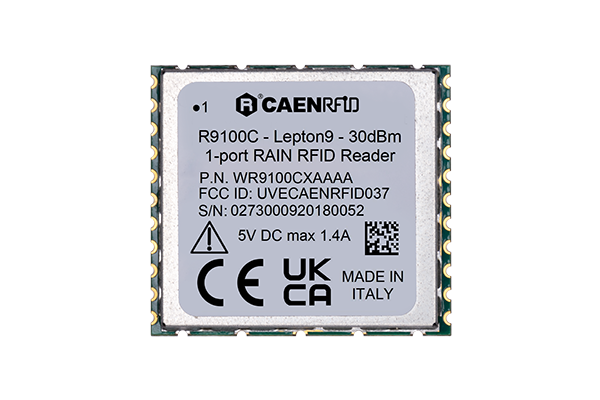

Lepton9 Compact Reader Module
CAEN RFID’s Lepton9 is a compact reader module ideal for use in low-power, high-performance RAIN RFID applications. Based on the Impinj E910 RAIN RFID reader chip, the Lepton9 offers a fast reading speed for use in dense tag and reader environments. The module’s compact size make the Lepton9 an ideal reader module for use in smaller handheld devices.

-
Category:Reader Modules
-
Purpose:Mobile and handheld devices; high-performance read points
-
Impinj Product:Impinj E910
-
# of Antenna Ports:1
-
Dimension Length (mm):32
-
Dimension Width (mm):29
-
Max Power Output (dBm):30
-
Additional Info:
Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.
ABOUT THE PARTNER

CAEN RFID
CAEN RFID designs and manufactures RAIN RFID readers, from module to fixed and mobile. The offering is completed by dual frequency RAIN/NFC loggers.

Easy to integrate into handhelds and other devices
The Lepton9 allows for the easy integration of RAIN RFID into battery-powered devices such as industrial handhelds, smartphone accessories, and other compact form-factor devices. Thanks to its high sensitivity, the Lepton9 can also be used to build high-performance fixed read points.
High sensitivity, power, and performance
Ultra-high sensitivity

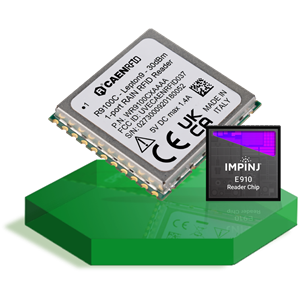

Powered by the Impinj E910 RAIN RFID reader chip, the Lepton9 module offers the highest read sensitivity (-90dBm) and read performance available in a CAEN module family.
Powerful for high performance
The Lepton9’s ultra-high-performance capabilities make the module an ideal choice for use in dense tag and reader environments.
Surface-mount technology
SMT allows the Lepton9 to mount directly onto the surface of a circuit board. This method allows for increased manufacturing automation, which reduces costs.

Fast, sensitive, and multi-region compliant
With high-output power, high sensitivity and a fast read speed, the Lepton9 is ideal for low-power, high-performance RAIN RFID applications. With programmable output power between 10 dBm and 30 dBm, the reader can detect tags at a distance of more than 5 m.
The Lepton9 complies with and can operate in both U.S. and European regulatory environments. Because of its multiregional capability, the Lepton9 is the go-to module for readers that require regulatory compliance in multiple geographic regions.

Powerful reader modules built on Impinj reader chips
Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
