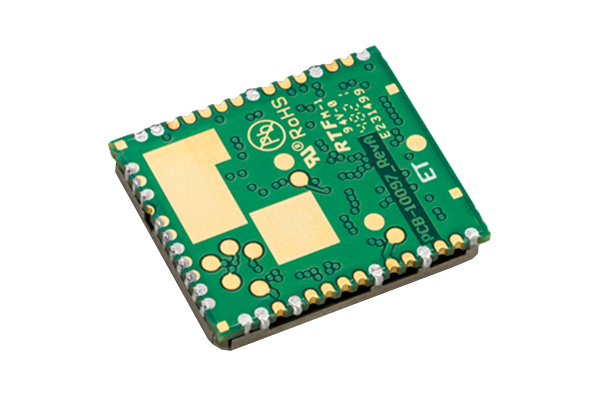

ThingMagic (R) M7e-Pico RAIN RFID Module

The ThingMagic M7e-Pico is among the smallest form factor, Mercury Series embedded RAIN RFID modules available. With very low power consumption, it is ideal for battery-operated, low-cost, small form-factor portable readers, while its wide RF output range (0 dBm to +24 dBm) meets the read and write requirements for RAIN RFID-enabled printers and tag-commissioning stations. It features the Impinj E310 RAIN RFID reader chip.

ThingMagic (R) M7e-Pico RAIN RFID Module
  • Category:
    Tag Chips
  • Purpose:
    Handheld devices, wearable devices, configuration and access control, and mobile printers
  • Impinj Product:
    Impinj E310
  • # of Antenna Ports:
    1
  • Dimension Length (mm):
    18
  • Dimension Width (mm):
    21
  • Max Power Output (dBm):
    24
  • Additional Info:

Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.



ABOUT THE PARTNER

ThingMagic, a JADAK Brand

ThingMagic, a JADAK Brand

JADAK ThingMagic RFID solutions improve patient safety and clinical workflow, minimize errors, and accurately track people and inventory


View Partner

medical-equipment

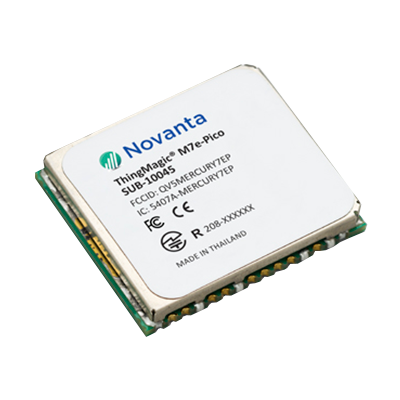

Small module for wearables, handheld scanners

The M7e-Pico, with built-in Impinj E310 RAIN RFID reader chip, is ideal for use in handheld printers, handheld readers, and sensor networks. As one of the smallest RAIN RFID modules on the market, it works optimally for tag-commissioning stations, smartphone accessories, medical equipment for the healthcare and pharmaceutical industries, as well as kiosks and smart vending machines.

Built for easy integration and high power

Surface Mount Technology (SMT)

At 18-by-21 millimeters, the compact form factor makes the M7e-Pico easy to integrate, even in compact devices.

Efficient power use

With low power consumption, the compact reader module is ideal for extended use of battery-operated devices without requiring frequent recharging.

Standard protocol for universal deployments

The M7e-Pico is configured for multiple regions, provides support for EPC global Gen2V2 (ISO 18000-63) protocol, and meets industry tag standards.

thingmagic-pico

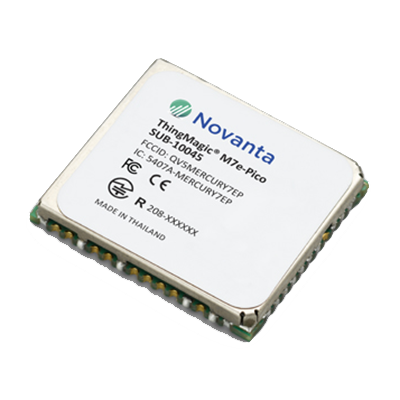

Small, low-power module for long battery life

The M7e-Pico is ideal for RAIN RFID applications that need small form factors and low power consumption, such as wearable RAIN RFID devices, RAIN RFID printers, smart vending machines, and handheld scanners. This compact module is supported by ThingMagic’s Mercury API.

placeholder

Powerful reader modules built on Impinj reader chips

Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
