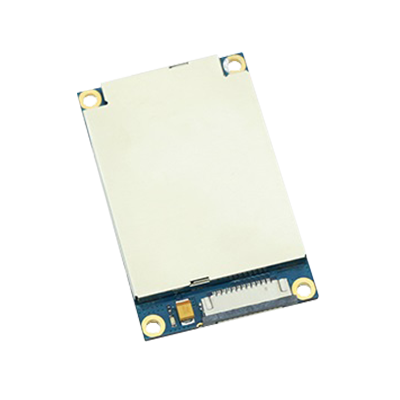

RRU9885M RAIN RFID Reader Module
RoyalRay’s RRU9885M RAIN RFID reader module leverages the power of an Impinj RAIN RFID reader chip for high performance in mobile and handheld devices. This module is based on RoyalRay’s proprietary digital signal processing algorithm. It boasts exceptional RF power and a compact size, with a narrow 5.2 millimeter profile to fit into the smallest readers.
-
Category:Reader Modules
-
Purpose:Mobile and handheld devices
-
Impinj Product:Impinj R2000
-
# of Antenna Ports:1
-
Dimension Length (mm):56
-
Dimension Width (mm):36
-
Max Power Output (dBm):30
-
Additional Info:
Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.
ABOUT THE PARTNER
RoyalRay
Shenzhen RoyalRay Science and Technology Co., Ltd. specializes in the development, production, and sales of RFID reader products.
Low power, high performance
The RRU9885M is designed for lower power dissipation without compromising performance. It provides fast read/write operation along with exceptional tag identification rates. This compact device can be widely used with handheld reading devices for logistics, access control, and industrial production process control systems.
Feature-rich for optimal performance
Multi-tag, anti-collision
The RRU9885 offers excellent multi-tag, anti-collision features and fully supports EPC Class 1, G2 RAIN RFID tags, leveraging a high-performance Impinj reader chip.
Adjustable RF output power
RoyalRay’s RRU9885M reader module can provide the RF output specific to the device’s application, up to 33 dBm.
Dedicated memory storage
With a tag buffer size up to 700 PCS, this reader offers all the dedicated memory needed for an EPC tag ID.
Powerful reader modules built on Impinj reader chips
Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
