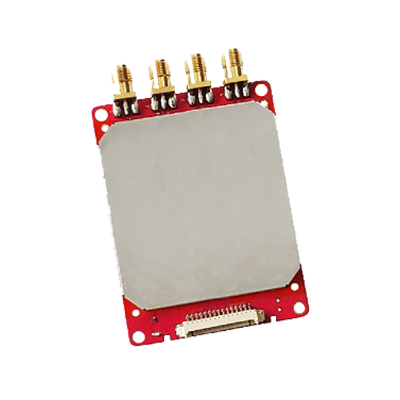

RRU2882M RAIN RFID Reader Module

RoyalRay’s RRU2882M is a high-performance RAIN RFID fixed reader module designed to provide sensitive and reliable RFID reads. Based on the company’s proprietary, efficient, digital signal processing algorithm, the device also boasts the flexibility of a four-socket SMA antenna port. For continued, seamless reader management, this module offers on-site firmware upgrading.

RRU2882M RAIN RFID Reader Module
  • Category:
    Reader Modules
  • Purpose:
    Logistics, access control, anti-counterfeit and industrial production process control system.
  • Impinj Product:
    Impinj R2000
  • # of Antenna Ports:
    4
  • Dimension Length (mm):
    68
  • Dimension Width (mm):
    51
  • Max Power Output (dBm):
    33
  • Additional Info:

Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.

ABOUT THE PARTNER

RoyalRay

RoyalRay

Shenzhen RoyalRay Science and Technology Co., Ltd. specializes in the development, production, and sale of RFID reader products.

View Partner

forklift-lifting

High read rate for access control, logistics, and more

This versatile and effective module leverages a high-performance Impinj RAIN RFID reader chip to support fast tag read and write operation, with exceptional read rates. The RRU2882M can be applied in many RFID application systems, such as logistics, access control, attendance systems, anti-counterfeiting, and industrial production process control systems.

Top performance and high memory

Optimal read effectiveness

With excellent multi-tag anti-collision operation, the RRU2882M boasts a read rate of more than 700 tags per second, and fully supports EPC Class 1 G2/ISO18000-6B protocol tags.

Adjustable RF output power

This versatile RAIN RFID reader module can offer RF output according to the user’s needs up to 33 dBm.

High tag storage

With high read-processing speeds of up to 1,000 PCS, this module also offers all the storage needed for an EPC tag ID with a maximum memory of 496 bits.
