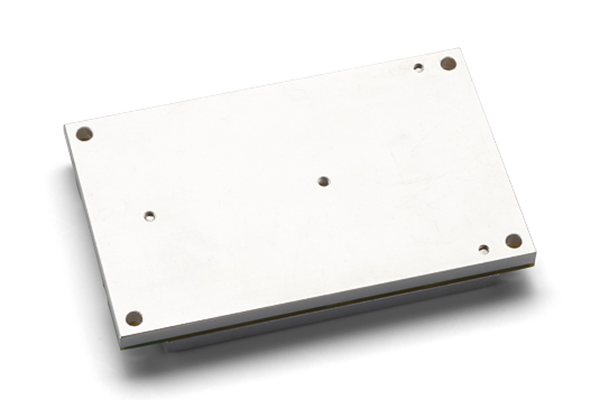

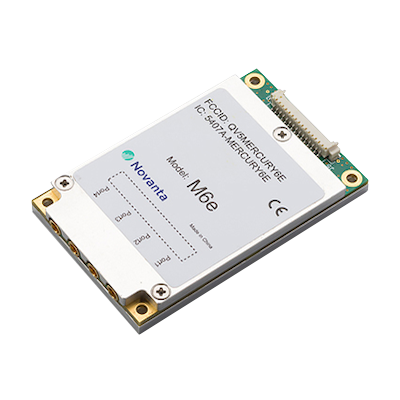

ThingMagic (R) M6e RAIN RFID Reader Module

The ThingMagic M6e RAIN RFID reader module is a perfect fit for applications with the most demand for power and flexibility, while offering improved development and time-to-market advantages. The M6e module, leveraging an Impinj RAIN RFID reader chip, comes in a compact, embeddable form factor, supporting four antenna ports and providing long read range.

Category:

Reader Modules
Purpose:

Race Timing, portals with long cable runs, conveyors requiring multiple antennas, and retail applications
Impinj Product:

Impinj R2000
# of Antenna Ports:

4
Dimension Length (mm):

69
Dimension Width (mm):

43
Max Power Output (dBm):

31
Additional Info:

Product Documentation

Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.

ABOUT THE PARTNER

ThingMagic a JADAK Brand

JADAK takes an engineer-to-engineer approach to your challenges, working directly with your team to get a deep understanding of your challenge, and then creating purpose-driven application solutions that are a precise fit.

View Partner

Versatile RAIN RFID reader module for reliable performance

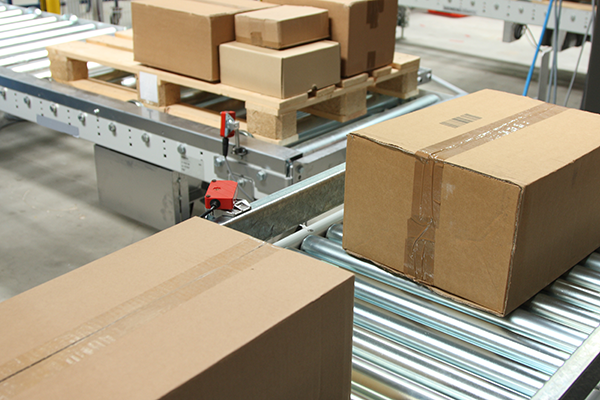

The ThingMagic M6e module provides RAIN RFID technology that can be embedded in readers produced by OEMs. It serves a wide range of applications from healthcare to pharmaceuticals, as well as in points-of-sale, access control, mobile devices, kiosks, and vending machines. The module also supports high-quality read performance for race timing, portals with long cable runs, and conveyors requiring multiple antennas.

Exceptional read performance in an easily embedded module

Small and powerful

The M6e module’s small form factor coupled with powerful performance means reader and device manufacturers can build reliable readers for any application.

High read rate

This powerful unit boasts a read rate of 750 tags per second, making it ideal for fast-paced environments.

Long-range RF transmission

Offering an extensive RF transmission range, this effective reader module can accomplish tag reads at a distance of 30 feet.

Strong performance in a small package

The ThingMagic M6e is a high-performing, four-port RAIN RFID module packed with features such as easy configuration for multiple global regions, adjustable RF output, and two separate read and write levels. The M6e is ideal for demanding applications, including at manufacturing sites, in a kiosk, or in a vending machine, with ultra-low power consumption.

Powerful reader modules built on Impinj reader chips

Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
