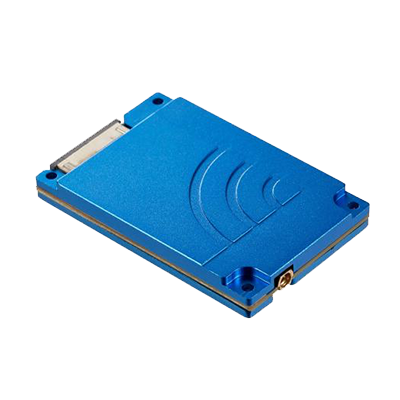

Smart Series HZ510 UHF RFID Module

The Shenzhen Hopeland HZ510 is a miniaturized RAIN RFID reading and writing module that supports up to 33 dBm RF power output, making it a good choice for integration into a handheld reader or reader/writer device. Boasting the Impinj E710 RAIN RFID reader chip as its core platform, this small device offers high sensitivity and strong performance.

Smart Series HZ510 UHF RFID Module
  • Category:
    Reader Modules
  • Purpose:
    Handheld RAIN RFID reader
  • Impinj Product:
    Impinj E710 and R2000
  • # of Antenna Ports:
    1
  • Dimension Length (mm):
    56
  • Dimension Width (mm):
    36
  • Max Power Output (dBm):
    33
  • Additional Info:

Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.



ABOUT THE PARTNER

Shenzhen Hopeland

Shenzhen Hopeland

Hopeland Technologies Co, Ltd. located in Shenzhen, China, is a national-level high-tech enterprise that passed ISO9001, ISO14001, OHSAS18001 system certifications, began RFID-based R&D in 2009.


View Partner

machine-printing

Exceptional design for handheld readers, writers, and printers

This RAIN RFID unit provides developers with easy control through an API, which is suitable for devices used in various applications such as RAIN RFID tag printers, ATMs, anti-counterfeiting equipment, and warehouse management tools.

Long range and high performance for handheld readers

Maximum 35 meter read range

This best-in-class reader module is capable of a long range for tag reads in open environments.

Easy integration and rich API

The HZ510 RAIN RFID module is designed for intuitive, seamless integration into handheld or mobile devices.

Maximum -85 dBm receive sensitivity

With its built-in sensitivity, this module ensures RAIN RFID readers reliably read tags at long range.

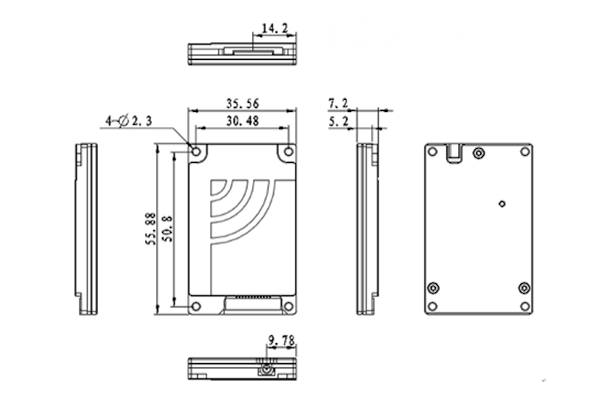

hz510-blueprint

Miniaturized, high-performance RAIN RFID reading

The HZ510 is designed for RAIN RFID handheld readers or tag writing devices. It features excellent sensitivity, an anti-conflict mechanism, multi-tag reading, integrated analog radio frequency front-end, and base-band digital signal processing modules, along with other functions. The unit’s small size makes it ideal for easy integration into lightweight and mobile devices.

placeholder

Built by Impinj partners, powered by Impinj reader chips

Accelerate your time to market by simplifying development, manufacturing, and certification. By choosing an Impinj-enabled reader module based on your unique requirements for size, performance, and features, you can build the exact solution you need and get to market faster. Browse RAIN RFID reader modules from Impinj partners below.
