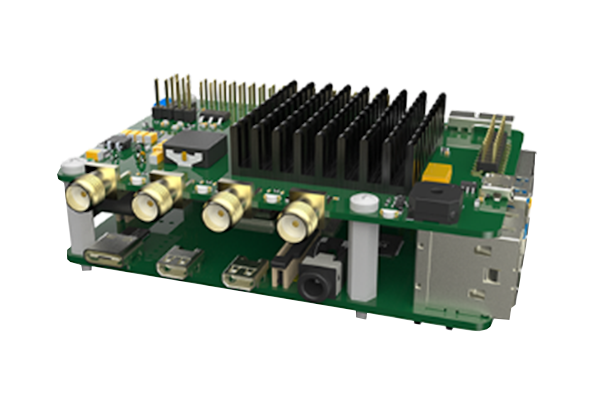

SAMDK series RAIN RFID reader

The SAMDK series of RAIN RFID fixed reader modules implements a dedicated power supply that simultaneously feeds the module itself along with a Raspberry Pi host. Each of these unique, highly flexible modules – the SAMDK300, SAMDK500, and SAMDK700 — also integrates a buzzer, an RGB signaling LED, one high-power GPO, and one GPI for a wide variety of applications. Communication between a SAMDK module and the RPi host can be accomplished via I2C, UART, or high-speed SPI interfaces. The built-in Impinj E310, E510, and E710 RAIN RFID reader chips ensure the best in read performance with every tag.

SAMDK series RAIN RFID reader
  • Category:
    Fixed Readers
  • Purpose:
    Reading solutions with sophisticated embedded applications
  • Impinj Product:
    Impinj E310 E510 and E710
  • # of Antenna Ports:
    4
  • Dimension Length (mm):
    86
  • Dimension Width (mm):
    57
  • Max Power Output (dBm):
    30
  • Connectivity:
    SPI, UART, I2C, Ethernet, Wi-Fi, BT, USB, and HDMI
  • Environment:
    Non-Rugged
  • Power Source:
    +9 to +24VDC VDC input
  • Reader Form Factor:
    Raspberry Pi “hat”
  • Additional Info:

Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.



ABOUT THE PARTNER

Identix

Identix

Identix RAIN RFID IoT gateways


View Partner

retail-operation

Serving multiple applications

With full flexibility in mind, Identix developed SAMDK – a complete RAIN RFID solution based on Raspberry Pi that can be used as a development kit "carrier board” for the SAMDK line of RFID modules. The modules also operate as high-performance, full-featured readers along with RPi as the main host, or as stand-alone reader PCBs for embedded applications.

Built for Raspberry Pi and optimized for high performance

Raspberry Pi hat

This series of high-quality readers provides a complete RAIN RFID solution for the Raspberry Pi in a “hat” form factor.

Feature-rich for the greatest flexibility

The SAMDK series boasts an integrated power supply — for RFID module and RPi — as well as one GPI, one GPO, one integrated buzzer, and programmable high-luminosity RGB LED.

Global operating frequency

With worldwide regulatory support, these readers operate in the U.S. (FCC) and Europe (ETSI), among other regions.

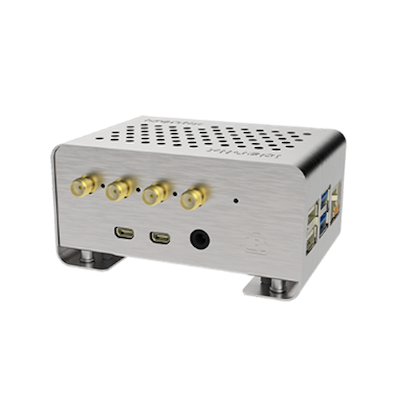

SAMDK-image

RAIN RFID and BLE with a host of added features

Indentix’s RAIN RFID modules, with integrated Bluetooth Low Energy (BLE) beacon support, provide the most flexibility in gateway capabilities, along with a rich set of communication interfaces.

Partner-Fixed-Reader

Partner-built fixed RAIN RFID readers use Impinj chips for performance and reliability

Efficiently use automation to improve visibility into inventory and enterprise assets by using a high-performing RAIN RFID reader built with an Impinj reader chip inside. Manufactured by Impinj partners, these fixed infrastructure readers deliver a range of performance, size, and power consumption designs. Fixed infrastructure RAIN RFID readers can augment systems that include RAIN RFID handheld readers.
