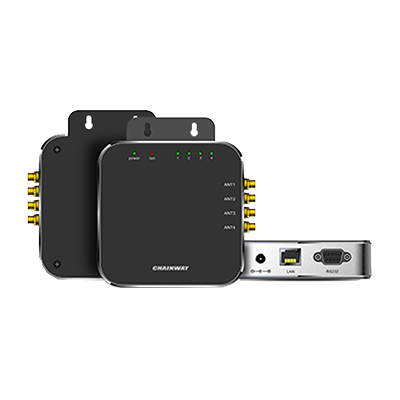

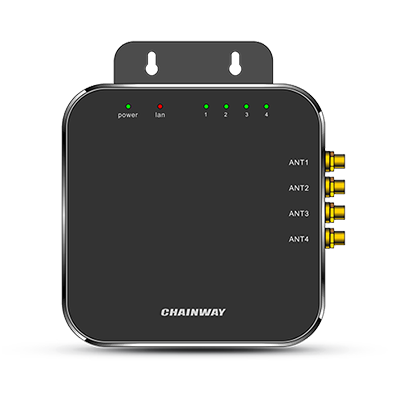

UR4 Fixed RFID Reader

The Chainway UR4 is a four-port fixed RAIN RFID reader built with a high-performance Impinj RAIN RFID reader chip. The UR4 supports RS232 and RJ45 data connectors and is compatible with various types of antennas. It is resistant to electromagnetic interference and effective at heat dispersion. With high integrability and stable connectivity, the UR4 RAIN RFID reader can be deployed in complex environments, such as warehousing, library management, banking, retail, linen management, manufacturing, and more.

UR4 Fixed RFID Reader
  • Category:
    Fixed Readers
  • Purpose:
    Retail, vending machines, manufacturing, and inventory management
  • Impinj Product:
    Impinj E710 and R2000
  • # of Antenna Ports:
    4
  • Dimension Length (mm):
    102
  • Dimension Width (mm):
    102
  • Max Power Output (dBm):
    33
  • Connectivity:
    GPIO;LAN;Serial
  • Environment:
    Rugged
  • Power Source:
    Power Adapter
  • Reader Form Factor:
    Fixed
  • Additional Info:

Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.



ABOUT THE PARTNER

Chainway

Chainway

Chainway is an industry-leading RFID supplier that designs, develops, and manufactures a wide range of high-performance RFID products.


View Partner

ur4-use-case

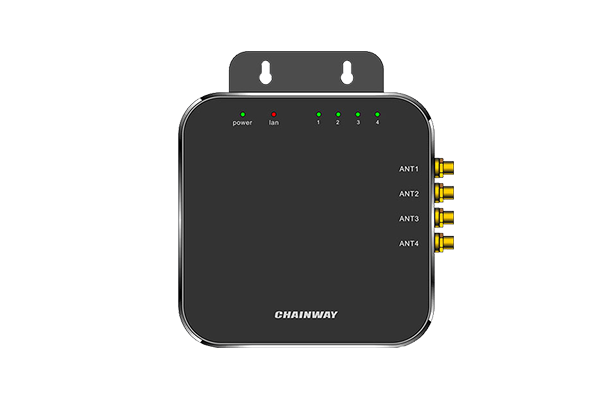

Effective four-port reader for complex environments

This high-performance reader is a four-port device leveraging an Impinj RAIN RFID reader chip, that can serve the most challenging environments. The UR4 reader works well in applications from rail facilities to shipyards, from airports to production lines, by providing reliable and highly sensitive reads when tagged items are moving through complicated, crowded, fast-paced settings. The UR4 is optimal for managing complex RAIN RFID data efficiently and without errors.

Effective and reliable fixed reader for diverse applications

High-performance RAIN RFID reader

This highly effective RAIN RFID fixed reader comes with a top-performing Impinj RAIN RFID reader chip and can accomplish more than 900 tags reads per second.

Compatible with various types of antennas

The four-port reader can accommodate most types of RAIN RFID antennas for greater flexibility.

Stable and reliable

This reliable fixed reader performs exceptionally well at temperatures from minus-25 to 65 degrees Celsius and humidity from 10% to 95%. It boasts heat dissipation and anti-electromagnetic interference capabilities.

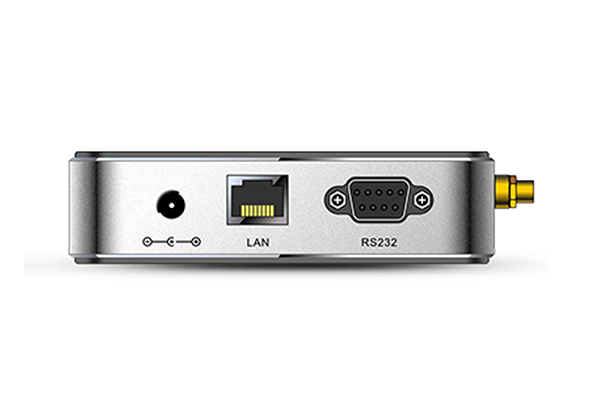

UR4-port-side

Outstanding RAIN RFID performance

The four-port UR4 fixed reader offers fast and long-range RAIN RFID tag reads, along with support for Windows, Linux, or Android software development environments to enable applications built for use in complex environments. The UR4 provides reliable and highly sensitive reading whether at a manufacturing site, shipyard, or retail setting.

Partner-Fixed-Reader

Partner-built fixed RAIN RFID readers use Impinj chips for performance and reliability

Efficiently use automation to improve visibility into inventory and enterprise assets by using a high-performing RAIN RFID reader built with an Impinj reader chip inside. Manufactured by Impinj partners, these fixed infrastructure readers deliver a range of performance, size, and power consumption designs. Fixed infrastructure RAIN RFID readers can augment systems that include RAIN RFID handheld readers.
