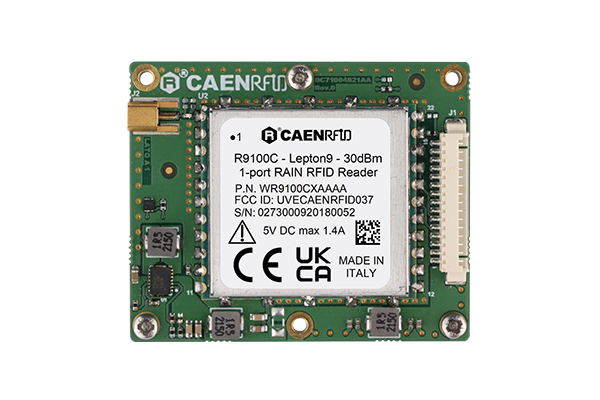

Lepton9x1 Compact Reader Module

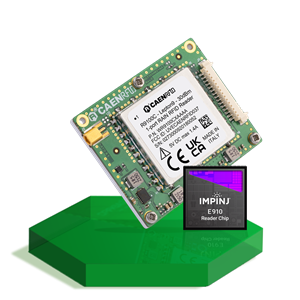

The CAEN RFID Lepton9x1reader module is ultra-compact in size and consumes very little power, making it an ideal RAIN RFID reader module for low-power, high-performance applications. Its single antenna port module can be easily integrated into battery-powered devices such as handheld readers, printers, point-of-sale readers, and voice-operated gloves. Enabled by the Impinj E910 RAIN RFID reader chip and based on the design of the CAEN Lepton9, the Lepton9x1 differs in that it allows users to integrate the module via connectors instead of surface mounting.
Purpose:Mobile and handheld devices; high-performance read points
Impinj Product:Impinj E910
# of Antenna Ports:1
Dimension Length (mm):51
Dimension Width (mm):42
Max Power Output (dBm):30
ABOUT THE PARTNER
CAEN RFID designs and manufactures RAIN RFID readers, from module to fixed and mobile. The offering is completed by dual frequency RAIN/NFC loggers.
RAIN RFID for handhelds and other mobile devices
The Lepton9x1 is an ultra-compact reader for low-power, high-performance RAIN RFID applications. It is easily integrated into industrial handhelds, smartphone accessories, and other battery-powered compact form factor devices. The Lepton9x1’s high sensitivity makes it an ideal reader module for building high-performance fixed read points.
Wide voltage range
The Lepton9x1’s wide power supply voltage range allows it to connect directly to battery packs, extending its use in dense and fast-paced environments.
Up to 30 dBm output power
With programmable output power between 10 dBm and 30 dBm, the Lepton9x1 can detect tags at a distance of more than 5 meters.
Ideal for dense tag environments
With ultra-high read sensitivity (-90 dBm) enabled by the Impinj E910 RAIN RFID reader chip, the Lepton9x1 can quickly and reliably discover and engage a high volume of connected items.
Fast and powerful reader module
With programmable output power between 10 dBm and 30 dBm, the Lepton9x1 can detect tags at a distance of more than 5 meters (depending on antenna and tag dimensions). Powered by the Impinj E910 RAIN RFID reader chip, this high-sensitivity reader module is appropriate for environments where tags are dense and item-level visibility is required, such as retail, supply chain, logistics, and other markets. The Lepton9x1 complies with regulatory environments worldwide, eliminating concerns of regional regulatory incompatibility.
Powerful reader modules built on Impinj reader chips
Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
