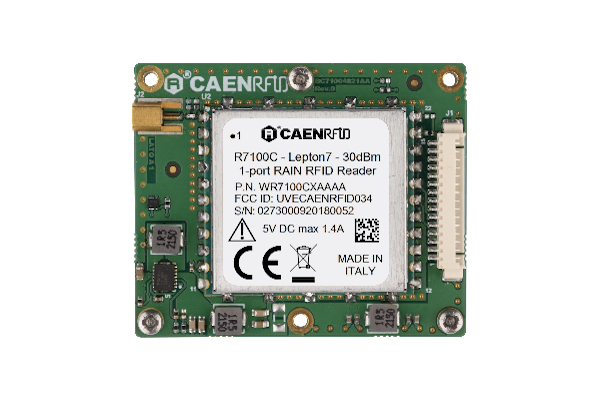

Lepton7x1 RAIN RFID Reader Module

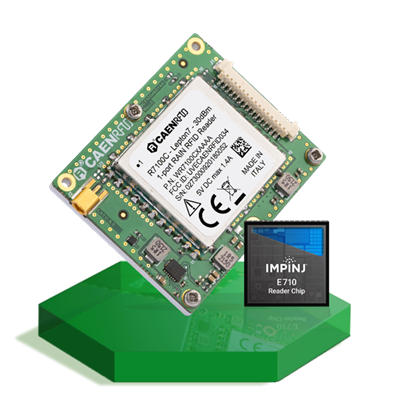

The Lepton7x1 is a compact reader module from CAEN that delivers high performance RAIN RFID functionality to mobile and handheld readers. Due to its low power consumption and small size, the module is specifically designed to be easily integrated into battery powered devices. Powered by the Impinj E710 RAIN RFID reader chip, this robust module achieves fast reading speed and is ideal for use in dense tag environments; providing consistent, optimal performance.

Lepton7x1 RAIN RFID Reader Module
  • Category:
    Reader Modules
  • Purpose:
    Mobile, handheld, and fixed readers
  • Impinj Product:
    Impinj E710
  • # of Antenna Ports:
    1
  • Dimension Length (mm):
    51
  • Dimension Width (mm):
    42
  • Max Power Output (dBm):
    30
  • Additional Info:


ABOUT THE PARTNER

CAEN RFID

CAEN RFID

CAEN RFID designs and manufactures RAIN RFID readers, from module to fixed and mobile. The offering is completed by dual frequency RAIN/NFC loggers.


View Partner

warehouse

Compact, highly sensitive module for handheld devices

The small size of the reader module allows companies to embed the Lepton7x1 inside industrial handhelds, smartphone accessories, voice-operated gloves or points-of-sale readers. Its compact footprint means companies can make RAIN RFID technology accessible for the smallest mobile devices or fixed reading points.

Exceptional performance for flexible range

High power

This module provides optimal read rates and distance with its 10 dBm to 30 dBm RF transmission.

High sensitivity

The Lepton7x1 can read tags with unmatched accuracy—even in crowded environments.

Wide voltage range

The Leptonn7x1 accomplishes a power supply range of 3.2 to 5.25 volts DC.

7x1-image

Powerful, fast RAIN RFID tag reading

This RAIN RFID reader module will enable handheld devices and point of sale readers to accomplish reliable tag reading at high speed. The Lepton7x1 complies with, and can operate in, both European and US regulatory standards.

placeholder

Powerful reader modules built on Impinj reader chips

Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
