SLR6100 Module

The Silion SLR6100 RAIN RFID reader module boasts 16 ports, making it ideal for applications that require multiple antennas. The module uses echo-cancellation technology to eliminate unwanted RF noise. A built-in Impinj RAIN RFID reader chip allows this module to offer excellent RF performance and provide the stable reading that is needed for RFID reading applications, no matter the environment.

SLR6100  Module
  • Category:
    Reader Modules
  • Purpose:
    vending machines, and multiple-antenna connecting applications
  • Impinj Product:
    Impinj R2000
  • # of Antenna Ports:
    16
  • Dimension Length (mm):
    130
  • Dimension Width (mm):
    112
  • Max Power Output (dBm):
    30
  • Additional Info:

Notice: The Impinj Partner Directory includes third-party content and links that our partners provide. Impinj is not responsible for third-party content and makes no warranty, representation, or undertaking related to content, goods or services provided by any third party. Please refer to the Impinj.com terms of use, including Sections 4, 7 and 14. Your link to or use of a third-party website is at your own risk and subject to the third-party website policies, including those relating to confidentiality, data privacy and security.



ABOUT THE PARTNER

Beijing Silion Technology Corporation

Beijing Silion Technology Corporation

Provides leading RAIN RFID module products for RFID applications.


View Partner

vending-machine

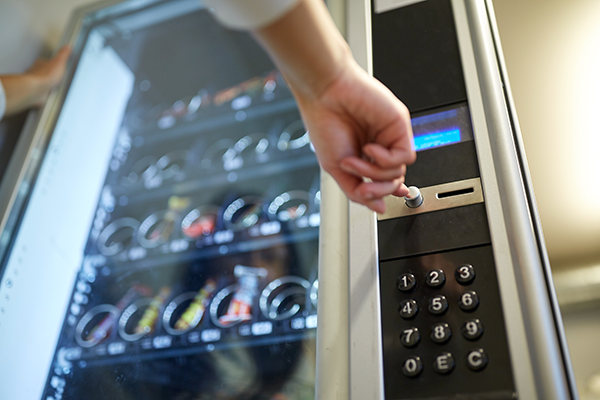

Bringing RAIN RFID-based intelligence to unmanned retail

In the unmanned retail industry, the SLR6100 provides visibility into vending machine operation. Users can leverage highly effective RAIN RFID read functionality by select the food or beverages of their choice and being automatically billed. With this 16-port read module’s reliability, vending machine operators can rest assured that their inventory will be tracked with high accuracy.

Ensuring reliable reading at high speed

16 antenna ports

This device is uniquely designed to support a large number of antennas, for use in vending machines and electronic shelving.

High-speed read rate

The SLR6100 boasts an anti-collision algorithm allowing it to read up to 700 tags per second, while also offering 30 dBm in RF sensitivity.

Excellent heat dissipation

The device’s large-area aluminum alloy provides a  thermal-conductive panel to release heat.

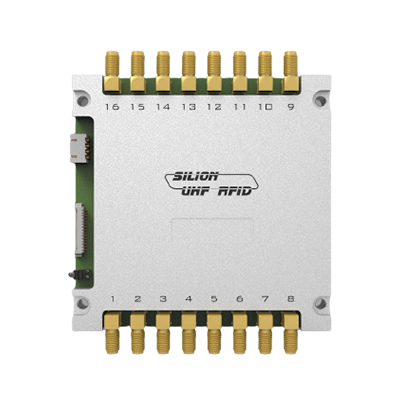

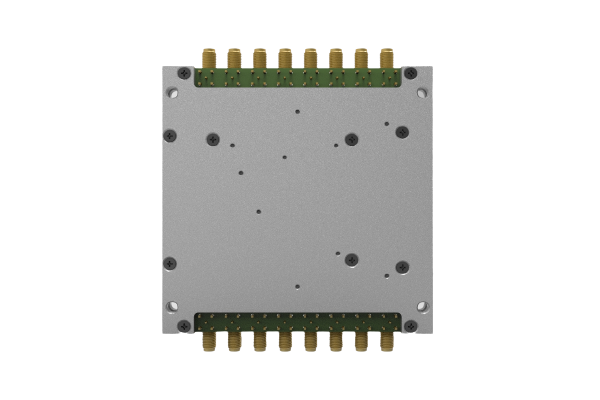

SLR6100-image

Built to integrate into shelving or vending machines

Based on an Impinj RAIN RFID reader chip, this reader module offers outstanding performance. Weighing 280 grams and measuring 130.4-by-112 millimeters, the unit fits into vending machines or integrates into shelving. The module offers either fixed or hop-frequency options for the best operation in any application.

placeholder
