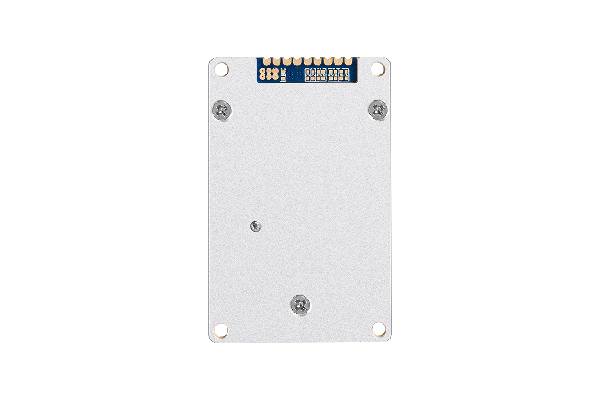

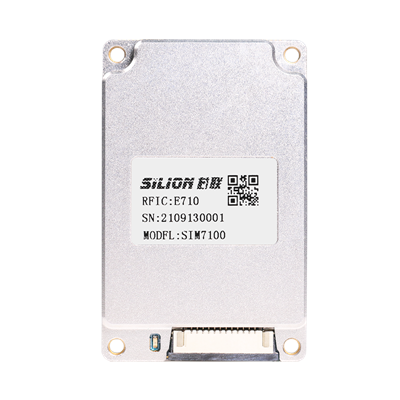

SIM7100 Module

The UHF high-performance module SIM7100 is designed for high-performance RFID handheld devices and mobile readers. With an MMCX antenna interface that supports RF outputs up to 33 dBm, this module's high sensitivity, small size, good RF performance, and advanced anti-jamming design make it a preferred choice for mobile devices.

SIM7100 Module
  • Category:
    Reader Modules
  • Purpose:
    RFID handheld device, mobile device and integrated reader
  • Impinj Product:
    Impinj E710
  • # of Antenna Ports:
    1
  • Dimension Length (mm):
    56
  • Dimension Width (mm):
    36
  • Max Power Output (dBm):
    33
  • Additional Info:


ABOUT THE PARTNER

Beijing Silion Technology Corporation

Beijing Silion Technology Corporation

Provides leading RAIN RFID module products for RFID applications.


View Partner

retail-operation

High-performance solution for mobile RAIN RFID readers

This device, with a built-in Impinj E710 RAIN RFID reader chip, is optimized to provide strong performance in handhelds, mobile devices, printers, and integrated readers. This module’s high sensitivity, along with its compact size and strong RF performance, make it ideal for use in mobile devices. It also offers unique features that include advanced anti-jamming.

Flexibility with feature-rich design

High RF output and exceptional chip

Based on the Impinj E710 reader chip, this powerful module also provides an MMCX RF coaxial antenna interface and supports RF sensitivity up to 33 dBm.

Multiple monitoring functions

This unparalleled module supports tag signal strength detection, as well as antenna connection status and working temperature detection.

Two options for reading mode

The SIM7100 supports regular reading mode for low power consumption and fast mode for multi-tag reading in a shorter period of time.

sim7100-image

Reliable multi-tag reading

The SIM7100 module brings exceptional RAIN RFID read functionality to handheld and mobile readers with an RF output up to 33 dBm. It supports fast reading up to 900 tags per second, at a distance up to 9 meters when using a 3 dBi antenna.

placeholder

Powerful reader modules built on Impinj reader chips

Impinj partner-built reader modules enable device manufacturers to accelerate the time to market by simplifying development, manufacturing, and certification. By choosing a reader module based on your unique size, performance, and feature requirements, you can simplify the development of customized RAIN RFID-enabled devices and IoT solutions, optimize your performance, get to market faster, and build the solution you need with a reader module powered by Impinj.
